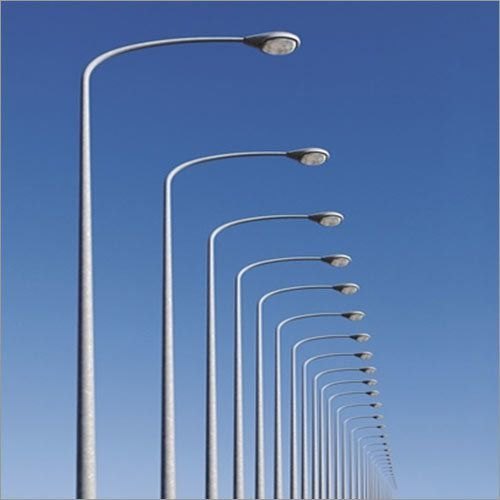

SWAGED TUBULAR POLES (STPs)

SWAGED TUBULAR POLES (STPs)

With our rich history in producing ERW Pipes for the last 70 years, we have recently ventured into production and supply of Swaged Tubular Poles (STPs) - A true value addition to our ERW Pipes. And, within 3 months of commercial production, we have now been supplying over 30,000 Nos. of STPs to the prestigious Odisha Greenfield Project, apart from executing other orders for few other clients.

We design and manufacture Swaged Type Steel Tubular Poles from our own "JINDAL" Make ERW Pipes.

Our Integrated Product Chain begins with the procurement of Hot Rolled Coils, conforming to IS : 10748, IS : 5986 and other equivalent International Standards, as per Client's requirements. These HR Coils are then used for producing ERW Pipes conforming to IS : 1161 and then for Swaged Tubular Poles as per IS : 2713.

Facilities:

  • Our manufacturing plant is equipped with 4 Swaging Machines and requisite nos. of Drilling, Welding and Straightening Machines.
  • We do have full fledged Mechanical and Chemical Laboratory including Spectrometer enabling us to do all the tests, in-house.
  • We have 13 M Zinc Galvanizing Tank, making it one of the largest in Eastern India.

Product Range:

  • We produce STPs up to the length of 16 Meters and thickness up to 6 MM, covering the entire range from 410 SP 1 to 410 SP 80 and 540 SP 1 to 540 SP 80.

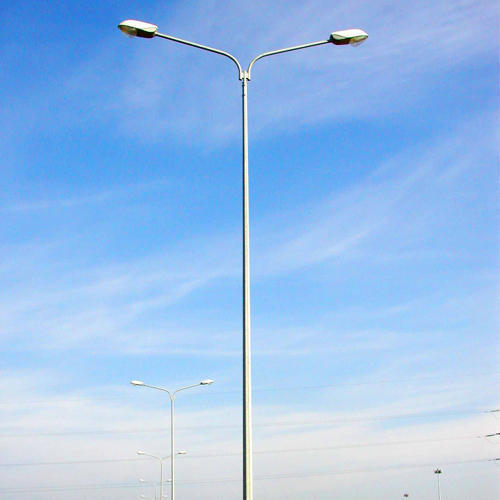

  • We also produce Single and Double Arm Brackets as per the Client's designs.

Product Range:

1.Metal Crash Barrier: All types of W-Beam, Threi Beam, Post, Spacer, End Terminal, End shoes, Fish Tail (Available in all Indian & International Standard.

2.Pedestrian Guard Rail: Either from Tubular pipes/ Square Hollow-sections.

Application :

  • Street Lighting
  • Traffic Signal Lighting
  • Signage
  • Power Distribution
  • Solar Lighting
  • CCTV Surveillance
