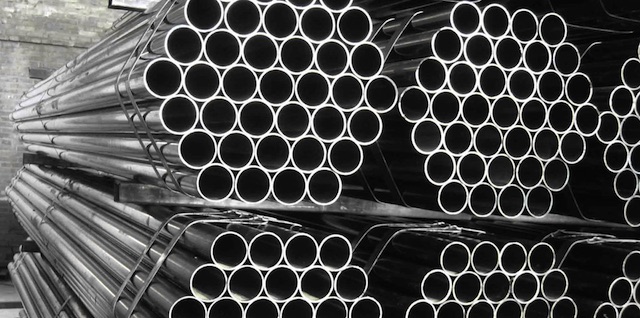

ERW Pipes

ERW Steel Tubes Black and Galvanized used for mechanical & general engineering purpose to IS 3601:2006 Sizes from 21.3mm OD and up to and including 406.4mm O.D thickness upto & including 12.7mm

ERW Steel Tubes used for water wells to IS 4270:2001,Sizes from 100mm NB upto and including 450mm NB thickness upto & including 10.0 mm in grade Fe 410.

ERW Hollow Steel Sections for Structural use as per IS 4923:1997.Covering all sizes and grades and thickness upto 10.0mm.The grades are YST 210,240 & 310. ERW Steel Tubes for Idlers,Belt Conveyors confirming to IS 9295:1983.Sizes upto & including 168.3mm 0.D thickness 5.4mm,in ERW Grades YST 210 & 240, plain ends in grade WT160,WT210,WT240,WT310.

ERW/Black and Galvanized & Steel Tubes
Production Capacity	160000 MT per annum
Manfacturing Process	ERW/HFW Welding Process
Outside Diameter	1/2" [15mm] to 10" [250mm]
Wall Thickness	2 mm to 9.5 mm
Pipe Length	4 Meters to 7 Meters
Specifications	IS,BS,ISO/ASTM/UL
Pipe Ends	PLain,Beveled or Socketed
Protective Coating	Bare,Galvanized or Rust Preventive Coating or Galvanized when agreed.
End Protection	Protected with Plastic & Sockets
