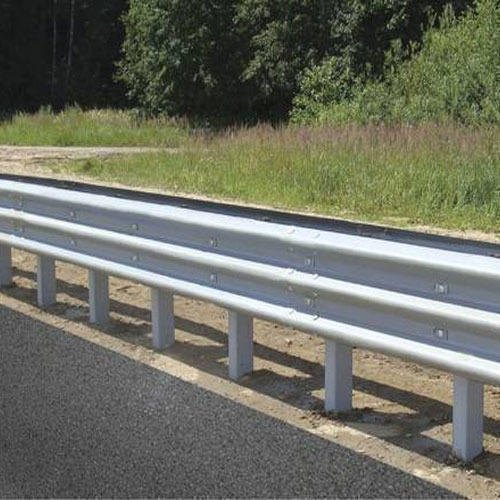

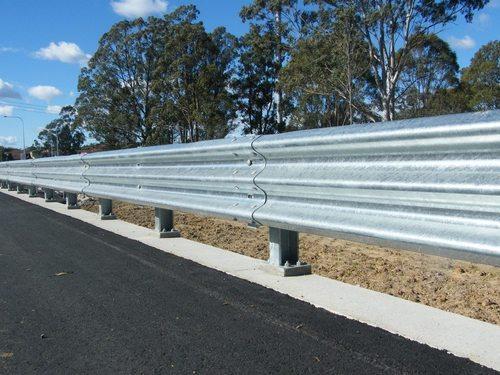

Metal Beam Crash Barriers - W Beam and Threi Beam

Product Specification: W-Beam/Threi Beam:

W –Beam /Threi Beam Metal Crash Barrier single side/Double Side Guard rail comprising of 3 mm (and also Customized) cold rolled section having minimum yield strength 2400 kg /sqcm having width of 312 /510 mm and depth of corrugation as 83 mm with hot dip galvanized of zinc coating@ 550 g/sqm having total length 4.318 M (effective length 4M) and also customized, generally as per MORTH specification.

Post & Spacer Channel:

The Post/Spacer channel made of cold rolled section having minimum yield strength 2400 kg /sqcm. The post/Spacer will be hot dip galvanized of zinc coating@ 550g/sqm having size of 150mm x75mm x 5mm thick(and customized) x Length as per the drawing approved by project consultant .

Hex & round/button Head bolt with Nuts & washer: As per the requirement. Certification:

Base Metal (HR Coil) as per IS: 5986/10748/2062 of Grade Fe 410,510 etc of TATA/SAIL/JINDAL Make.

• Min. yield Strength – 235-255 mpa
• Min. Tensile strength - 360-410 mpa

Galvanizing as per IS: 1364

• Hot dip galvanizing, minimum deposition.
• 550gm/M2 single spot.

Product Range:

1.Metal Crash Barrier: All types of W-Beam, Threi Beam, Post, Spacer, End Terminal, End shoes, Fish Tail (Available in all Indian & International Standard.

2.Pedestrian Guard Rail: Either from Tubular pipes/ Square Hollow-sections.

Metal Beam Crash Barriers - W Beam and Threi Beam
Production Capacity	60000 MT per annum
Manufacturing Process	Cold rolling from HR Coil Slits with fully automated Mills
Components	W Beam, Thrie Beam, Post & Spacers
W & Thrie Beam	As Per MORT&H Length may be customized as per customer requirement
Post & Spacer	150mm x 75mm, Length may be customized as per customer requirement
Length of W & Thrie Beam	4 Mtrs., May be Customised as per requirement
Protective Coating	Hot Dip Galvanizing
